S-216-J Series

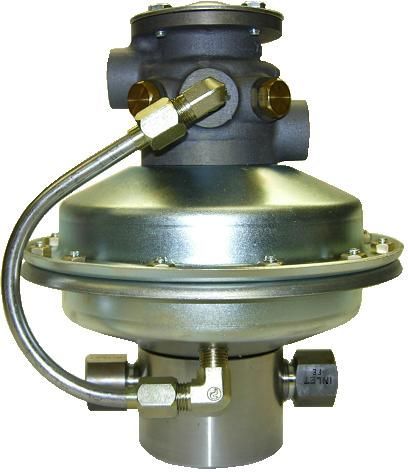

Sprague S-216-J Series Pumps

(Formerly Teledyne and Curtiss Wright)

Air powered hydrostatic pumps

SEAL MATERIAL
Pumps come standard with Nitrile seals (Buna-N, NBR).
Viton, EPR, Neoprene or other materials available on request.

Email us for price and availability.

J PUMPS, STANDARD, LUBRICATED AIR

Pump Ratio▼

Model #

10:1

S-216-J-10

20:1

S-216-J-20

30:1

S-216-J-30

35:1

S-216-J-35

60:1

S-216-J-60

100:1

S-216-J-100

Part Description          Ref. #

Price

Buy

Sprague S-216 Pump, 10:1, Standard, 79293-11

$1298.00

Sprague S-216 Pump, 20:1, Standard, 77894-11

$1256.00

Sprague S-216 Pump, 30:1, Standard, 77894-21

$1228.00

Sprague S-216 Pump, 35:1, Standard, 77895-81

$1228.00

Sprague S-216 Pump, 60:1, Standard, 77895-11

$1228.00

Sprague S-216 Pump, 100:1, Standard, 77895-21

$1228.00

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

1025

535

19

3/8 NPT

1910

485

17

3/8 NPT

3200

332

17

3/8 NPT

4760

297

15

3/8 NPT

6330

213

15

3/8 NPT

9,100

172

15

3/8 NPT

Liquid
Outlet

Info. /
Drgs.

3/8 PT

3/8 PT

3/8 PT

3/8 PT

3/8 PT

3/8 PT

125:1

S-216-J-125N

125:1

S-216-J-125

150:1

S-216-J-150

200:1

S-216-J-200

300:1

S-216-J-300

(Obsolete) 125:1N, Standard, 77895-61

$1298.00

(Obsolete) 125:1, Standard, 77895-61001

$1256.00

(Obsolete) 150:1, Standard, 77895-31001

$1228.00

(Obsolete) 200:1, Standard, 77895-41001

$1228.00

(Obsolete) 300:1, Standard, 77895-51001

$1228.00

(Obsolete - Order JB-101 or JB-125 below)

(Obsolete - Order JB-101 or JB-125 below)

(Obsolete - Order JB-101 or JB-125 below)

(Obsolete - Order JB-101 or JB-125 below)

(Obsolete - Order JB-101 or JB-125 below)

Order
rebuild
kits for pumps
(including
obsolete
models)
HERE

JB PUMPS, SEVERE SERVICE (W / PISTON BUSHING), LUBRICATED AIR

Pump Ratio▼

Model #

35:1

S-216-JB-35

60:1

S-216-JB-60

100:1

S-216-JB-100

101:1

S-216-JB-101

125:1

S-216-JB-125

150:1

S-216-JB-150

Part Description          Ref. #

Price

Buy

Sprague S-216 Pump, 35:1, Severe Srv, 94186-035-01

$1297.00

Sprague S-216 Pump, 60:1, Severe Srv, 94186-060-01

$1297.00

Sprague S-216 Pump, 100:1, Severe Srv, 94186-100-01

$1297.00

Sprague S-216 Pump, 101:1, Severe Srv, 94186-101-01

$1297.00

Sprague S-216 Pump, 125:1, Severe Srv, 94186-125-11

$1434.00

Sprague S-216 Pump, 150:1, Severe Srv, 94186-150-11

$1434.00

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

4610

297

15

3/8 NPT

6330

213

15

3/8 NPT

9,100

172

15

3/8 NPT

10,000

150

15

3/8 NPT

12,400

130

15

1/4 NPT

16,200

78

15

1/4 NPT

Liquid
Outlet

Info. /
Drgs.

3/8 PT

3/8 PT

3/8 PT

3/8 PT

9/16-18 NBS

9/16-18 NBS

200:1

S-216-JB-200

300:1

S-216-JB-300

Sprague S-216 Pump, 200:1, Severe Srv, 94186-200-11

$1657.00

Sprague S-216 Pump, 300:1, Severe Srv, 94186-300-11

$1751.00

24,900

53

15

1/4 NPT

36,500

37

15

1/4 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS Uses 1/4" HPCT Fittings

JN PUMPS, STANDARD, NON-LUBRICATED AIR

Pump Ratio▼

Model #

10:1

S-216-JN-10

20:1

S-216-JN-20

30:1

S-216-JN-30

35:1

S-216-JN-35

60:1

S-216-JN-60

100:1

S-216-JN-100

Part Description          Ref. #

Price

Buy

Sprague S-216 Pump, 10:1, Non-Lube, 89842-11

$1298.00

Sprague S-216 Pump, 20:1, Non-Lube, 89842-21

$1256.00

Sprague S-216 Pump, 30:1, Non-Lube, 89842-31

$1228.00

Sprague S-216 Pump, 35:1, Non-Lube, 89842-41

$1228.00

Sprague S-216 Pump, 60:1, Non-Lube, 89842-51

$1228.00

Sprague S-216 Pump, 100:1, Non-Lube, 89842-61

$1228.00

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

1025

535

19

3/8 NPT

1910

485

17

3/8 NPT

3200

332

17

3/8 NPT

4760

297

15

3/8 NPT

6330

213

15

3/8 NPT

9,100

172

15

3/8 NPT

Liquid
Outlet

Info. /
Drgs.

3/8 PT

3/8 PT

3/8 PT

3/8 PT

3/8 NPT

3/8 NPT

JBN PUMPS, SEVERE SERVICE (W / PISTON BUSHING), NON-LUBRICATED AIR

Pump Ratio▼

Model #

35:1

S-216-JB-35

60:1

S-216-JBN-60

100:1

S-216-JBN-100

101:1

S-216-JBN-101

125:1

S-216-JBN-125

150:1

S-216-JBN-150

Part Description          Ref. #

Price

Buy

Sprague S-216 Pump, 35:1, Non-Lube, Severe Srv, 94198-035-01

$1297.00

Sprague S-216 Pump, 60:1, Non-Lube, Severe Srv, 94198-060-01

$1297.00

Sprague S-216 Pump, 100:1, Non-Lube, Severe Srv, 94198-100-01

$1297.00

Sprague S-216 Pump, 101:1, Non-Lube, Severe Srv, 94198-101-01

$1297.00

Sprague S-216 Pump, 125:1, Non-Lube, Severe Srv, 94198-125-11

$1434.00

Sprague S-216 Pump, 150:1, Non-Lube, Severe Srv, 94198-150-11

$1434.00

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

4610

297

15

3/8 NPT

6330

213

15

3/8 NPT

9,100

172

15

3/8 NPT

10,000

140

15

3/8 NPT

12,400

130

15

1/4 NPT

16,200

78

15

1/4 NPT

Liquid
Outlet

Info. /
Drgs.

3/8 PT

3/8 PT

3/8 PT

3/8 PT

9/16-18 NBS

9/16-18 NBS

200:1

S-216-JBN-200

300:1

S-216-JBN-300

Sprague S-216 Pump, 200:1, Non-Lube, Severe Srv, 94198-200-11

$1657.00

Sprague S-216 Pump, 300:1, Non-Lube, Severe Srv, 94198-300-11

$1751.00

24,900

53

15

1/4 NPT

36,500

37

15

1/4 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS Uses 1/4" HPCT Fittings

JB-HO PUMPS, HIGH OUTPUT, LUBRICATED AIR

Pump Ratio▼

Model #

35:1

S-216-JB-35-HO

60:1

S-216-JB-60-HO

100:1

S-216-JB-100-HO

101:1

S-216-JB-101-HO

125:1

S-216-JB-125-HO

150:1

S-216-JB-150-HO

Part Description          Ref. #

Price

Buy

Sprague S-216 Pump, 35:1, Severe Srv, Hi-Output, 94194-035-01

$1516.00

Sprague S-216 Pump, 60:1, Severe Srv, Hi-Output, 94194-060-01

$1516.00

Sprague S-216 Pump, 100:1, Severe Srv, Hi-Output, 94194-100-01

$1516.00

Sprague S-216 Pump, 101:1, Severe Srv, Hi-Output, 94194-101-01

$1516.00

Sprague S-216 Pump, 125:1, Severe Srv, Hi-Output, 94194-125-11

$1654.00

Sprague S-216 Pump, 150:1, Severe Srv, Hi-Output, 94194-150-11

$1654.00

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

4610

535

15

3/8 NPT

6330

490

15

3/8 NPT

9,100

305

15

3/8 NPT

10,000

280

15

3/8 NPT

12,400

260

15

1/4 NPT

16,200

152

15

1/4 NPT

Liquid
Outlet

Info. /
Drgs.

3/8 PT

3/8 PT

3/8 PT

3/8 PT

9/16-18 NBS

9/16-18 NBS

200:1

S-216-JB-200-HO

300:1

S-216-JB-300-HO

Sprague S-216 Pump, 200:1, Severe Srv, Hi-Output, 94194-200-11

$1654.00

Sprague S-216 Pump, 300:1, Severe Srv, Hi-Output, 94194-300-11

$1970.00

24,900

103

15

1/4 NPT

36,500

72

15

1/4 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS Uses 1/4" HPCT Fittings

CALL OR EMAIL FOR INFORMATION ON S-216-JBN-XXX-HO PUMPS (NON-LUBE, HI-OUTPUT)

JS, JBS, JSN, JBSN PUMPS, SEPARATED (NON-CONTAMINATING)

Pump Ratio▼

Model #

Part Description          Ref. #

Price

Buy

Max Outlet

PSI

Max Flow
c-in/min

Approx.
weight, lbs

Liquid
Inlet

Liquid
Outlet

Info. /
Drgs.

CALL OR EMAIL FOR INFORMATION ON S-216-JS, -JBS, -JSN, -JBSN PUMPS (SEPARATED, NON-CONTAMINATING)

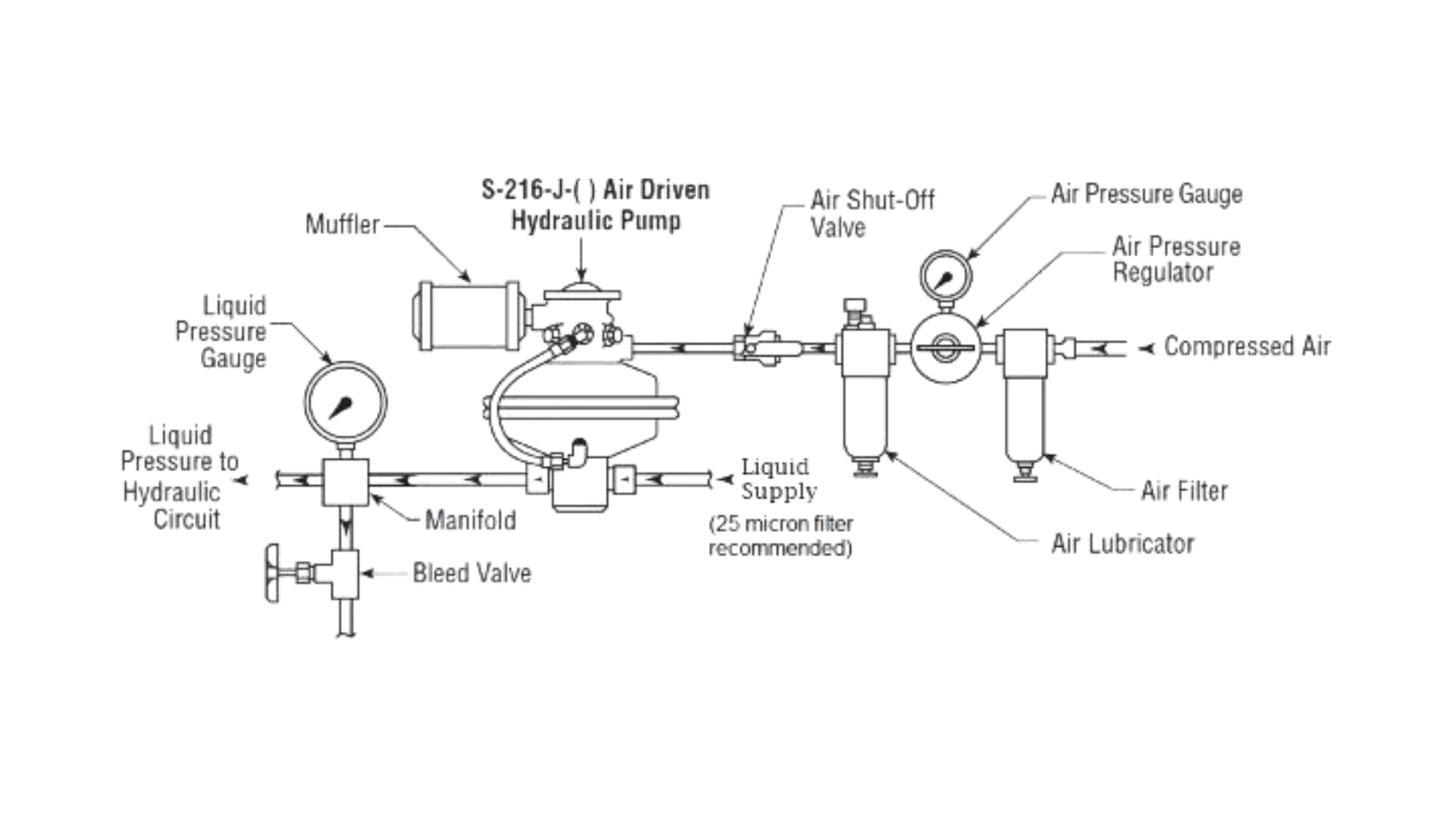

Typical J-pump Application Setup

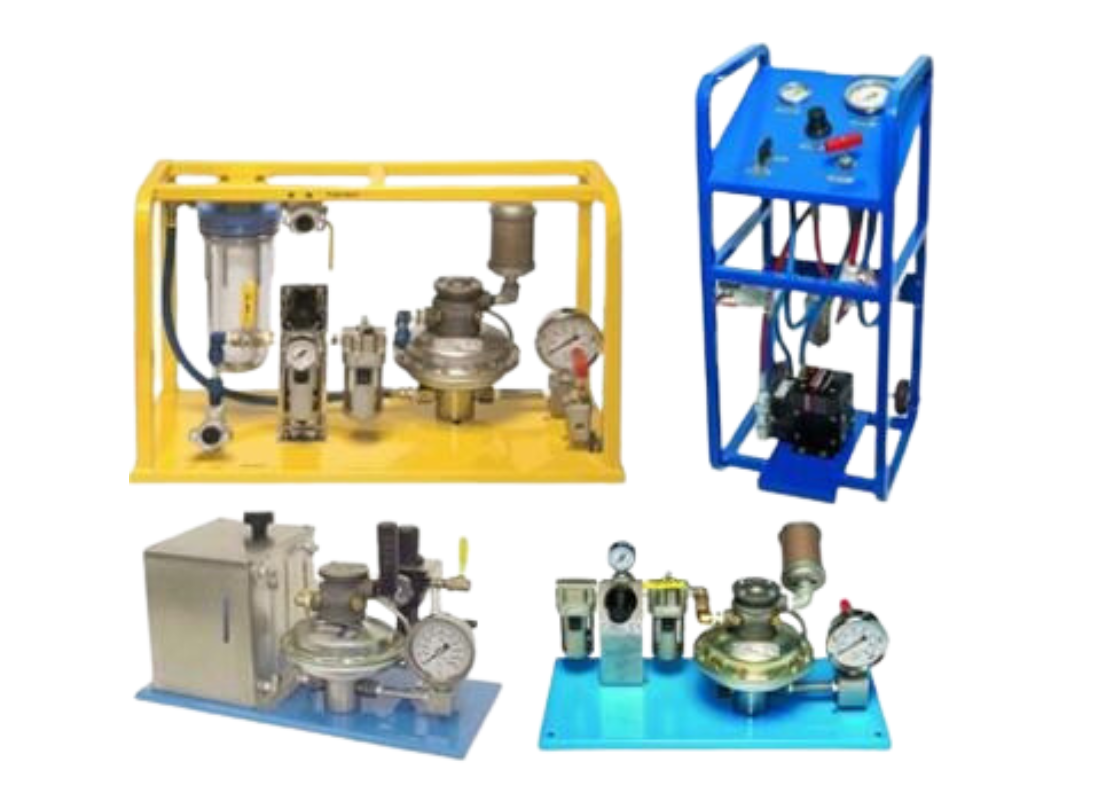

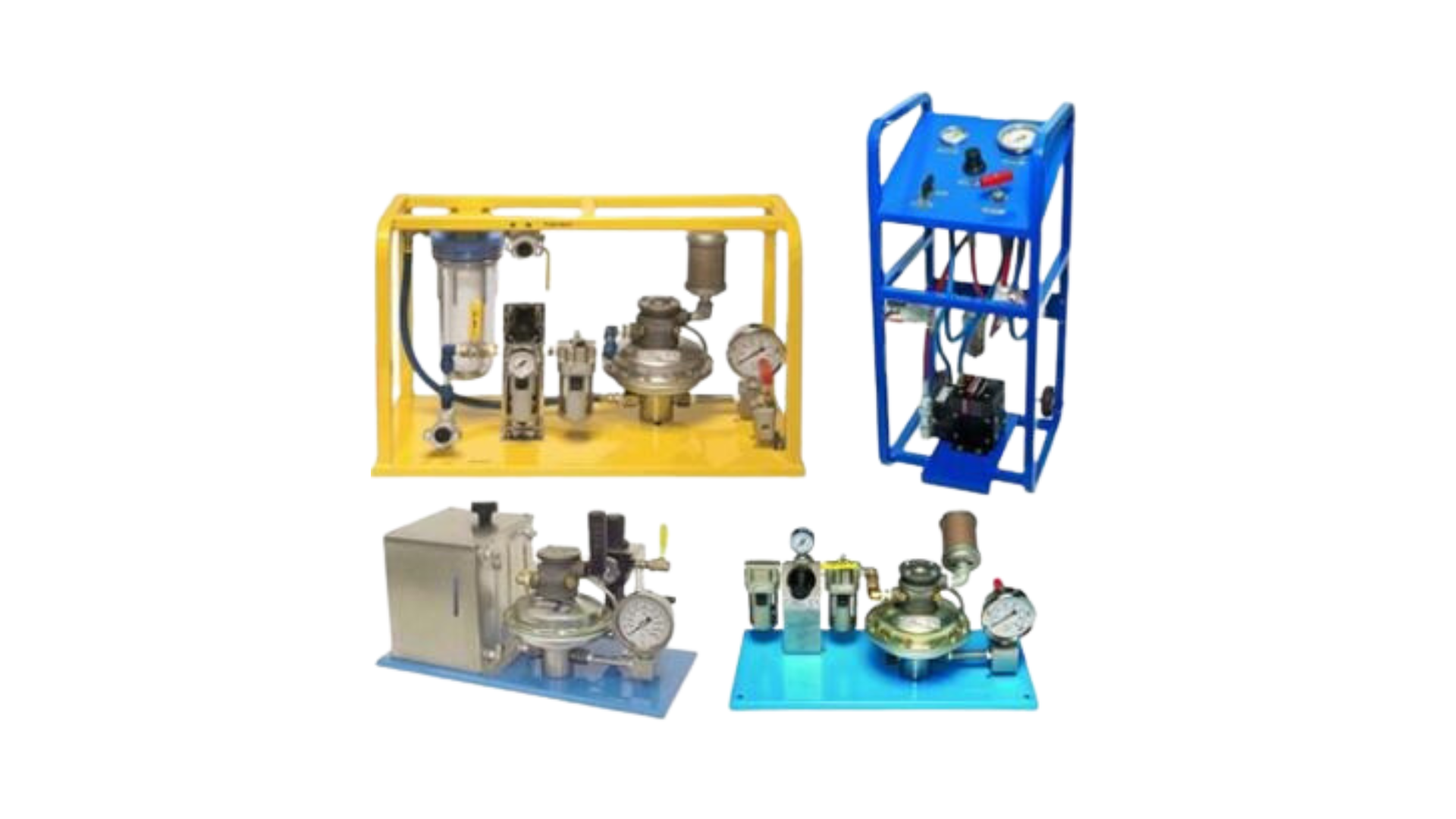

Pumps can be purchased as ready-to-go Power Units with components shown in the above schematic.
(Click photo)

For all

S-216-J Pumps

1/2" NPT muffler for S-216-J Series pumps. 5" LONG X 3 1/4" Dia.

89853

Muffler, 1/2 NPT

$26.00

Standard pumps come with Nitrile (Buna-N) seals.
Need Viton, EPR, Neoprene or other seal materials.

Email us for price and availability.

Volume pricing for motors
We offer volume pricing on most Sprague products as
follows:

1-2 units = List price
3-10 units = - 5%
11-25 units = -10%
>25 = call for quote.

List pricing will show when placing your order but the
discount will be applied when we process the order.
