Sprague Power Units

Sprague Power Units

● Portable
● Plug-and-Play
● Save time
● Matched, pressure-rated
components
● Various configurations
available
● Nitrile seals standard
(other options on request)

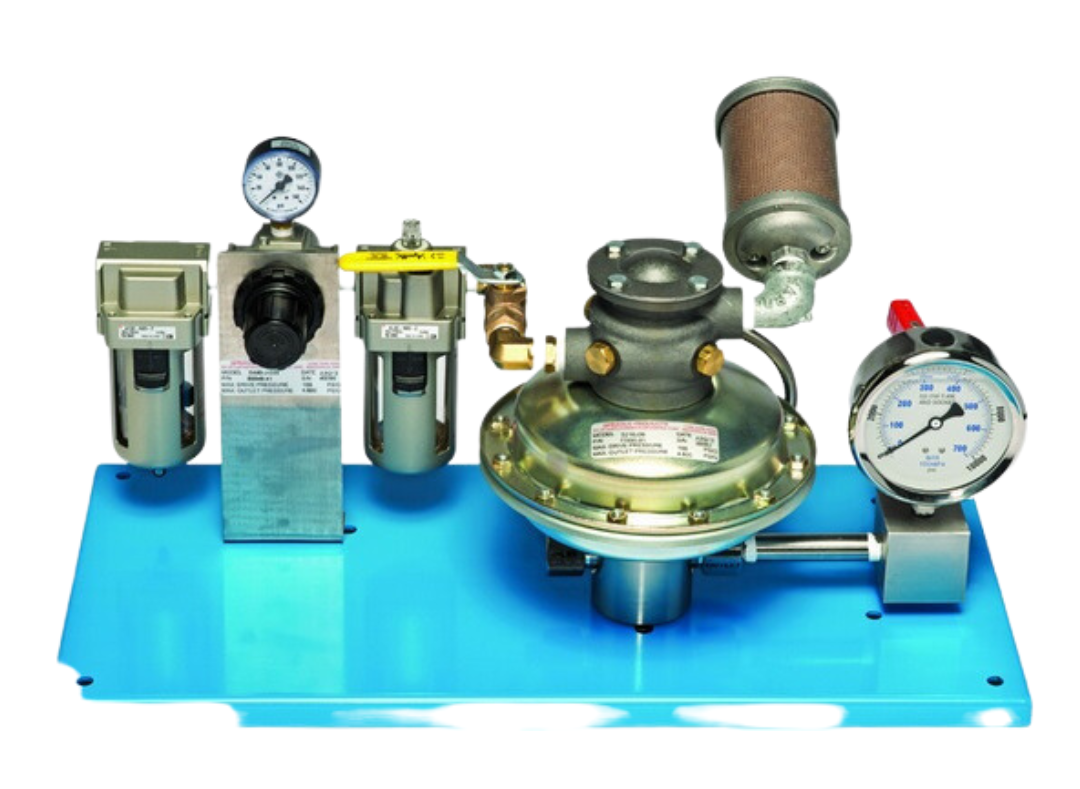

S-440 plate-mounted model shown
(See other options below)

What You Get
These ready-to-go power units come in a variety of
configurations. They all include an S-216-J or P4 Series pump
with an air prep unit (filter, lubricator, air pressure regulator) and a
gauge, air shut-off valve and muffler. On the high pressure side
they have a liquid outlet manifold, liquid pressure gauge and liquid
bleed valve. (See the schematic below.) Some units also include
a liquid inlet filter and/or a liquid reservoir with connecting lines.

Power Unit Advantages
Power Units have pumps mounted and plumbed with
both air controls and high pressure liquid controls.
This allows for portability and/or easy system
installation as well as control of pump outlet pressure
and flow rate, simple high pressure bleed-off, and
automatic lubrication/filtration of incoming air.

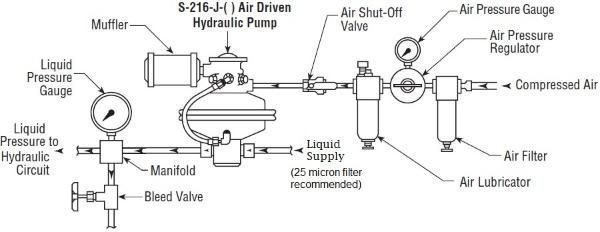

Power Unit Schematic

Power Unit lead times:
Please note that Power Units are not typically in stock. They are usually
made-to-order with a build time of 1-2 weeks, but sometimes as long as 3-5
weeks. Please email us for a model-specific lead time if your schedule is critical.

S-440
Plate Mounted
Model

• Plate mounted
• 11 “ x 11“ x 23” lg.
• 40 lbs
• Optional handles

S-440 PLATE MOUNTED SERIES WITH J & JB PUMPS, LUBRICATED AIR

Model #

S-440-J-010

S-440-J-020

S-440-J-030

S-440-J-035

S-440-J-060

S-440-J-100

S-440-JB-101

S-440-JB-125

S-440-JB-150

S-440-JB-200

S-440-JB-300

  Part Description              Ref. #

Price

Buy

Sprague S-440 Series, 10:1 J Pump, 89849-11

$2900.00

Sprague S-440 Series, 20:1 J Pump, 89849-21

$2858.00

Sprague S-440 Series, 30:1 J Pump, 89849-31

$2961.00

Sprague S-440 Series, 35:1 J Pump, 89849-41

$2961.00

Sprague S-440 Series, 60:1 J Pump, 89849-51

$2961.00

Sprague S-440 Series, 100:1 J Pump, 89849-61

$3001.00

Sprague S-440 Series, 101:1 JB Pump, SPG-440-101-21

$3070.00

Sprague S-440 Series, 125:1 JB Pump, SPG-440-125-11

$3568.00

Sprague S-440 Series, 150:1 JB Pump, SPG-440-150-21

$3847.00

Sprague S-440 Series, 200:1 JB Pump, SPG-440-200-21

$4139.00

Sprague S-440 Series, 300:1 JB Pump, SPG-440-300-21

$5453.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

1,025

485

44

3/8 NPT

1,910

485

42

3/8 NPT

3,200

297

40

3/8 NPT

4,760

297

40

3/8 NPT

6,330

213

40

3/8 NPT

9,100

172

40

3/8 NPT

10,000

140

40

3/8 NPT

12,400

130

40

1/4 NPT

16,200

78

40

1/4 NPT

24,900

53

40

1/4 NPT

36,500

37

40

1/4 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

Email us for quotation on unlisted models or seal options.

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

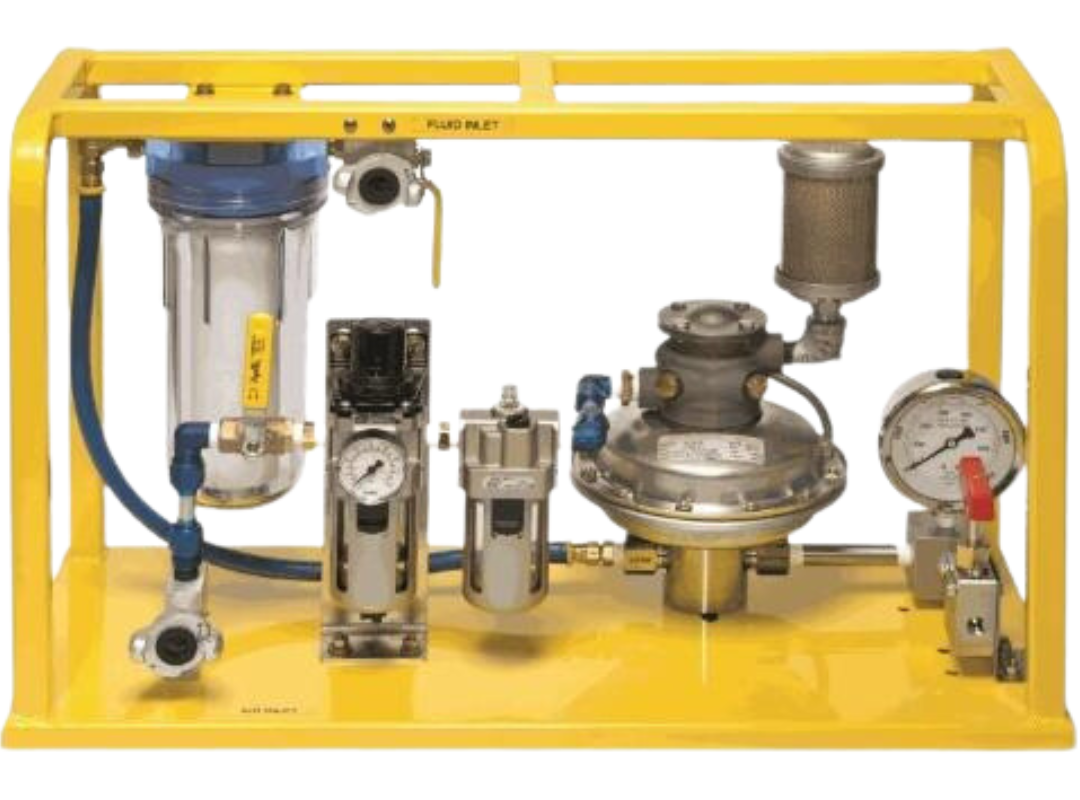

S-1600
Contractor
Model

• Includes inlet water filter
• Roll-cage frame
• Chicago style push-and-turn inlet fittings
• JB version pumps
• 29" W x 12" D x 18" H

S-440 PLATE MOUNTED SERIES WITH J & JB PUMPS, LUBRICATED AIR

Model #

S-1600-JB-035

S-1600-JB-060

S-1600-JB-100

S-1600-JB-101

S-1600-JB-125

S-1600-JB-150

S-1600-JB-200

S-1600-JB-300

  Part Description              Ref. #

Price

Buy

Sprague 1600 Contractor Series, 35:1 JB Pump, 94185-035-01

$4794.00

Sprague 1600 Contractor Series, 60:1 JB Pump, 94185-060-01

$4794.00

Sprague 1600 Contractor Series, 100:1 JB Pump, 94185-100-01

$4794.00

Sprague 1600 Contractor Series, 101:1 JB Pump, 94185-101-01

$4836.00

Sprague 1600 Contractor Series, 125:1 JB Pump, 94185-125-11

$5675.00

Sprague 1600 Contractor Series, 150:1 JB Pump, 94185-150-11

$5675.00

Sprague 1600 Contractor Series, 200:1 JB Pump, 94185-200-11

$5968.00

Sprague 1600 Contractor Series, 300:1 JB Pump, 94185-300-11

$7199.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

4,600

297

90

3/8 NPT

6,100

213

90

3/8 NPT

8,800

172

90

3/8 NPT

10,000

130

90

3/8 NPT

12,500

130

90

1/4 NPT

16,000

78

90

1/4 NPT

23,700

53

90

1/4 NPT

33,500

37

90

1/4 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

Email us for quotation on unlisted models or seal options.

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

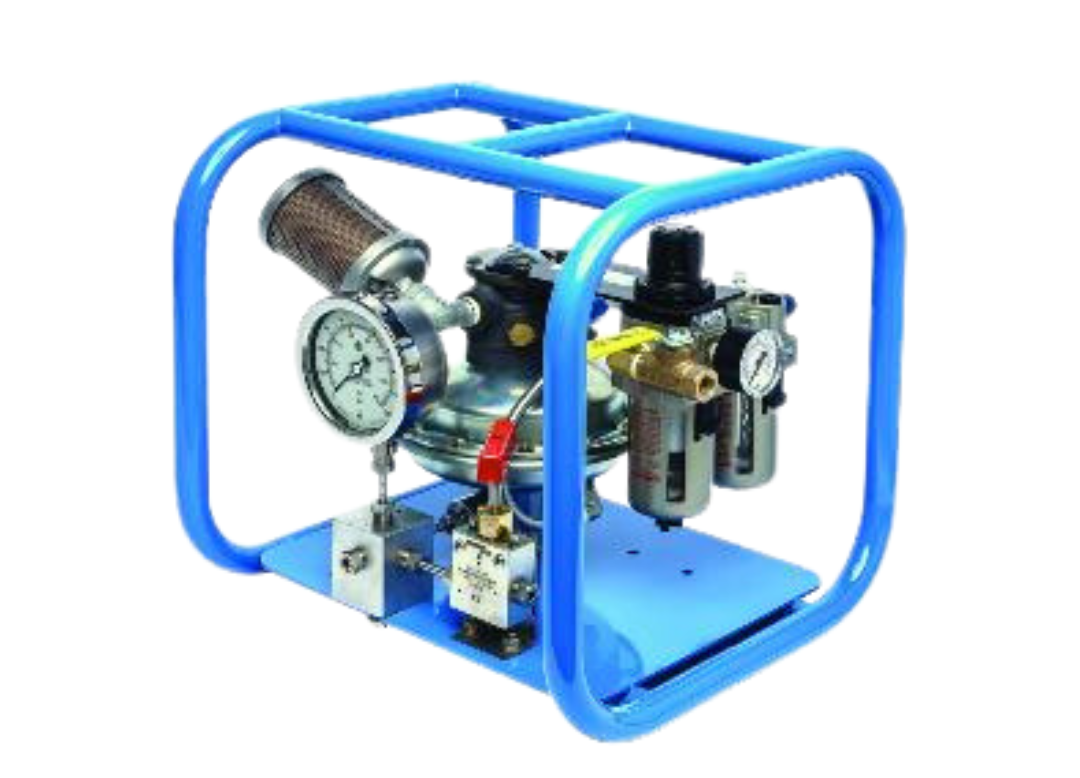

S-1400
Compact
Contractor
Model

• Welded steel roll-cage frame
• Compact portability
• Comes with Dual outlet gauges (not shown in picture)
• 15" W x 15" D x 15" H
• Weight: 53 lbs

Eng. Drawing, -10 thru -101

S-1400 COMPACT CONTRACTOR SERIES WITH J & JB PUMPS, LUBRICATED AIR

Model #

S-1400-J-010

S-1400-J-020

S-1400-J-035

S-1400-JB-035

S-1400-J-060

S-1400-JB-060

S-1400-J-100

S-1400-JB-100

  Part Description              Ref. #

Price

Buy

Sprague 1400 Compact Contractor, 10:1 J Pump, SPG-1400-010-01

$5608.00

Sprague 1400 Compact Contractor, 20:1 J Pump, SPG-1400-020-01

$5566.00

Sprague 1400 Compact Contractor, 35:1 J Pump, SPG-1400-035-01

$5716.00

Sprague 1400 Compact Contractor, 35:1 JB Pump, SPG-1400-035-21

$5782.00

Sprague 1400 Compact Contractor, 60:1 J Pump, SPG-1400-060-01

$5716.00

Sprague 1400 Compact Contractor, 60:1 JB Pump, SPG-1400-060-21

$5782.00

Sprague 1400 Compact Contractor, 100:1 J Pump, SPG-1400-100-01

$5716.00

Sprague 1400 Compact Contractor, 100:1 JB Pump, SPG-1400-100-21

$5782.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

1,000

485

55

3/8 NPT

1,850

485

54

3/8 NPT

4,600

297

53

3/8 NPT

4,600

297

53

3/8 NPT

6,100

213

53

3/8 NPT

6,100

213

53

3/8 NPT

8,800

172

53

3/8 NPT

8,800

172

53

3/8 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

S-1400-JB-101

S-1400-JB-125

S-1400-JB-150

S-1400-JB-200

S-1400-JB-300

Sprague 1400 Compact Contractor, 101:1 JB Pump, SPG-1400-101-11

$5845.00

Sprague 1400 Compact Contractor, 125:1 JB Pump, SPG-1400-125-11

$6045.00

Sprague 1400 Compact Contractor, 150:1 JB Pump, SPG-1400-150-11

$6045.00

Sprague 1400 Compact Contractor, 200:1 JB Pump, SPG-1400-200-11

$6267.00

Sprague 1400 Compact Contractor, 300:1 JB Pump, SPG-1400-300-11

$7383.00

10,000

140

53

3/8 NPT

12,500

130

53

1/4 NPT

16,000

78

53

1/4 NPT

23,700

53

53

1/4 NPT

33,500

37

53

1/4 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

Email us for quotation on unlisted models or seal options.

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

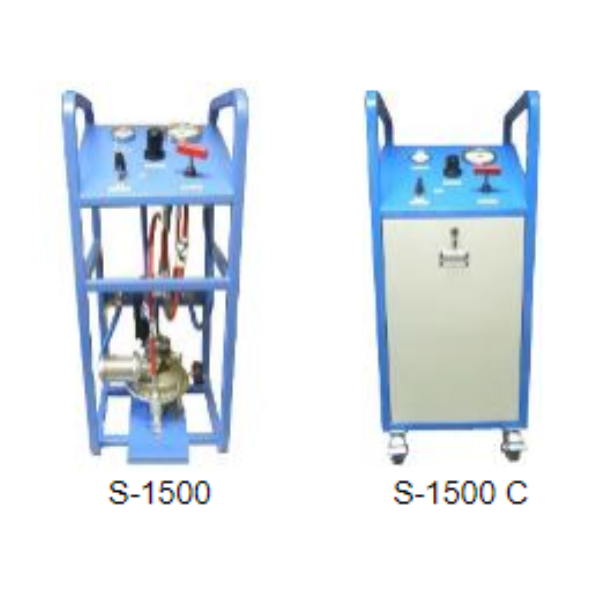

S-1500
S-1500 C
P-1500

Cart
Models

• Mounted on rolling cart
• Control console
• Enclosed lockable cabinet option
• J Series pump or P4 pump
• 17" W x 17" D x 42" H

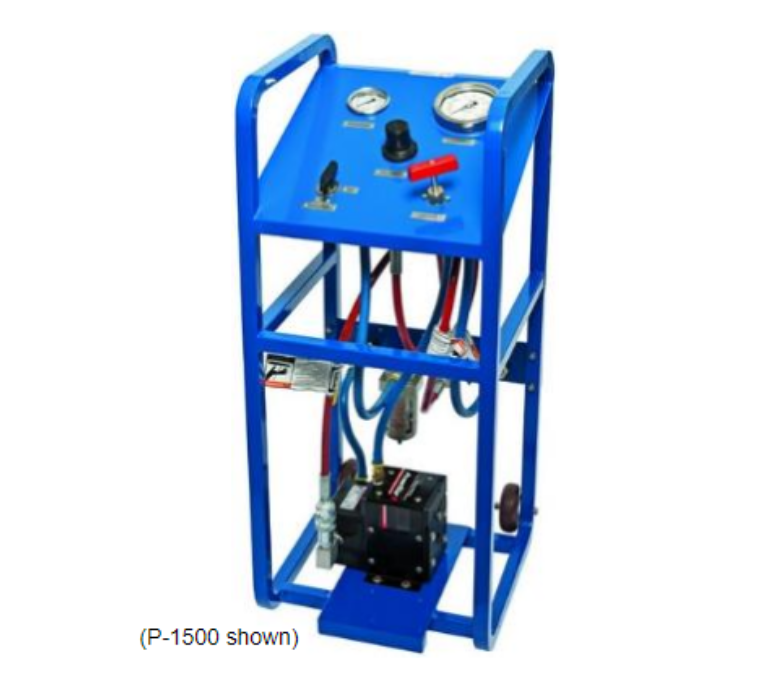

P-1500 SERIES ROLLING CART WITH P4 PUMPS, FOR NON-LUBRICATED AIR

Model #

P-1500-034

P-1500-064

P-1500-114

P-1500-203

P-1500-333

  Part Description              Ref. #

Price

Buy

Sprague P-1500 Series, 34:1 Powerstar Pump, 94285-034

$5703.00

Sprague P-1500 Series, 64:1 Powerstar Pump, 94285-064

$5703.00

Sprague P-1500 Series, 114:1 Powerstar Pump, 94285-114

$6069.00

Sprague P-1500 Series, 203:1 Powerstar Pump, 94285-203

$8057.00

Sprague P-1500 Series, 333:1 Powerstar Pump, 94285-333

$8581.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

3,200

240

75

1/2 NPT

6,000

160

75

1/2 NPT

10,200

75

75

3/8 NPT

19,500

43

75

3/8 NPT

33,000

22

75

3/8 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

S-1500 SERIES ROLLING CART WITH J SERIES PUMPS, LUBRICATED & NON-LUBRICATED AIR VERSIONS

Model #

S-1500-J-035-01

S-1500-JN-35

S-1500-J-060-01

S-1500-JN-100

S-1500-JBN-125

S-1500-JBN-150

S-1500-JBN-200

S-1500-JBN-300

  Part Description              Ref. #

Price

Buy

Sprague S-1500 Series, 35:1 J Pump, 94330-035-01

$5661.00

Sprague S-1500 Series, 35:1 JN Pump, 94284-035-01

$5661.00

Sprague S-1500 Series, 60:1 J Pump, 94330-060-01

$5661.00

Sprague S-1500 Series, 100:1 JN Pump, 94284-100-01

$5695.00

Sprague S-1500 Series, 125:1 JBN Pump, 94284-125-11

$6043.00

Sprague S-1500 Series, 150:1 JBN Pump, 94284-150-11

$6043.00

Sprague S-1500 Series, 200:1 JBN Pump, 94284-200-11

$6043.00

Sprague S-1500 Series, 300:1 JBN Pump, 94284-300-11

$6067.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

4,600

297

75

3/8 NPT

4,600

297

75

3/8 NPT

6,100

213

75

3/8 NPT

8,800

172

75

3/8 NPT

12,500

130

75

1/4 NPT

16,000

78

75

1/4 NPT

23,700

53

75

1/4 NPT

33,500

37

75

1/4 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

S-1500 SERIES ROLLING LOCKABLE CABINET WITH J SERIES PUMPS, FOR NON-LUBRICATED AIR

Model #

S-1500C-JBN-010

S-1500C-JBN-020

S-1500C-JBN-035

S-1500C-JBN-060

S-1500C-JBN-100

S-1500C-JBN-101

  Part Description              Ref. #

Price

Buy

Sprague S-1500 C Series, 10:1 JBN Pump, 94291-010-01

$7719.00

Sprague S-1500 C Series, 20:1 JBN Pump, 94291-020-01

$7719.00

Sprague S-1500 C Series, 35:1 JBN Pump, 94291-035-01

$7570.00

Sprague S-1500 C Series, 60:1 JBN Pump, 94291-060-01

$7570.00

Sprague S-1500 C Series, 100:1 JBN Pump, 94291-100-01

$7570.00

Sprague S-1500 C Series, 101:1 JBN Pump, 94291-101-01

$7604.00

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

1,025

485

95

3/8 NPT

1,910

485

95

3/8 NPT

4,760

297

95

3/8 NPT

6,330

213

95

3/8 NPT

9,100

172

95

1/4 NPT

10,000

140

95

1/4 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

Email us for quotation on unlisted models or seal options.

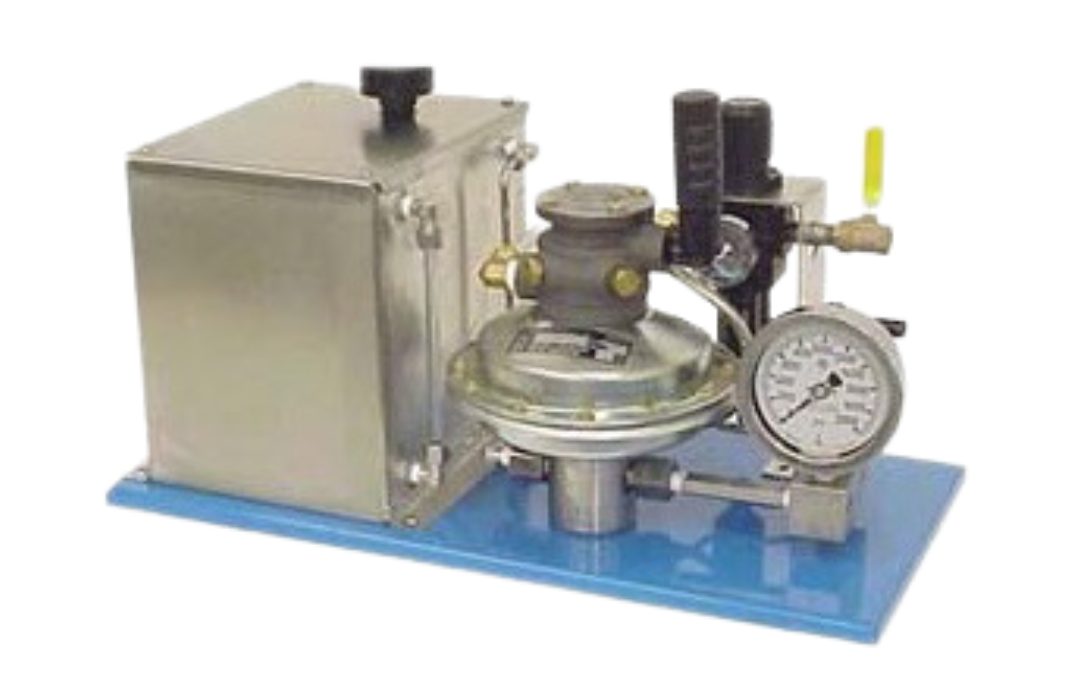

HSU-1101 / SPG-1101
Reservoir
Model

• Plate mounted
• With 3 Gallon S.S. reservoir

• Cap fill-strainer & sight glass

• J Series pump• 11" x 13" x 23
• Email us for layout drawing (not as shown)

S-1500 SERIES ROLLING LOCKABLE CABINET WITH J SERIES PUMPS, FOR NON-LUBRICATED AIR

Model #

  Part Description              Ref. #

Price

Buy

Max Outlet

PSI

Max Flow

cu-in/min

 Approx. Weight lbs

Liquid
Inlet

1,025

485

44

3/8 NPT

1,910

485

42

3/8 NPT

3,200

297

40

3/8 NPT

4,760

297

40

3/8 NPT

6,330

213

40

3/8 NPT

9,100

172

40

3/8 NPT

Liquid

Outlet

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

3/8 NPT

10,000

140

40

3/8 NPT

12,400

130

40

1/4 NPT

16,200

78

40

1/4 NPT

24,900

53

40

1/4 NPT

36,500

37

40

1/4 NPT

3/8 NPT

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

9/16-18 NBS

* 9/16-18 NBS LIQUID OUTLET PORT, FOR 1/4" HPCT FITTINGS

DON'T SEE IT?
Need a quote on a Sprague product you don't see above? Just email us
and we would be glad to quote you.

Or need Viton, EPR, Neoprene seals?
Email us for price and availability.
Standard pumps come with Nitrile seals (Buna-N, NBR).

Volume Pricing
We offer volume pricing on most Sprague products as
follows:

1-2 units = List price
3-10 units = - 5%
11-25 units = -10%
>25 = call for quote.

List pricing will show when placing your order but the
discount will be applied when we process the order.

Equivalent models: 41455K8, 41465K7, 41485K9

Share by:
