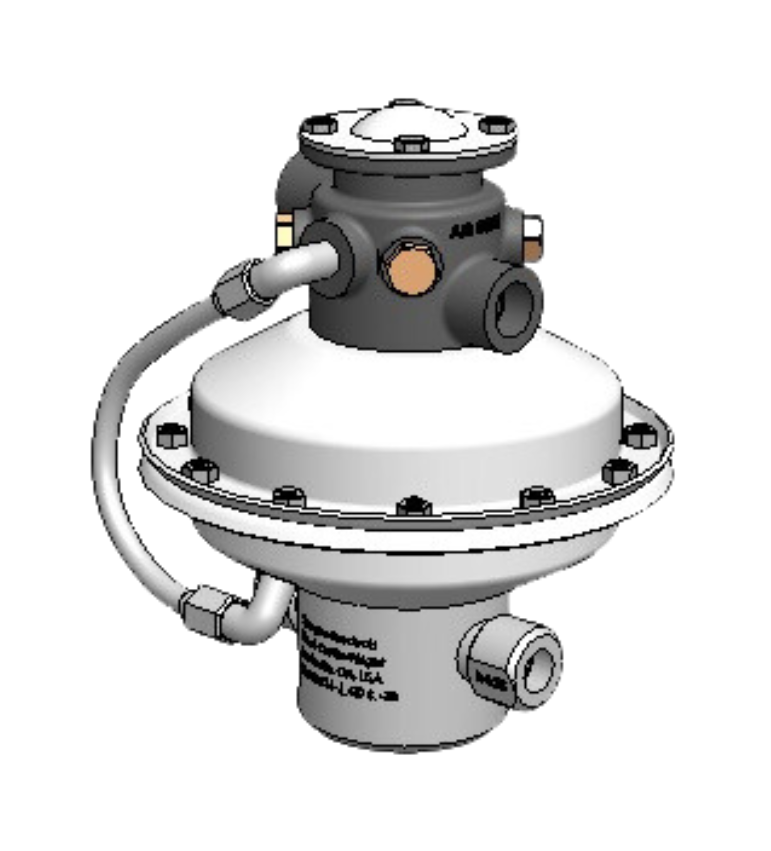

3D Models for Sprague S-216-J Series Pumps
Currently we offer STEP 3D models for the S-216-J Series pumps (no internal details). These are provided for your convenience and are not manufacturer-certified models.
See User Agreement and Disclaimer below before downloading.
File Download Name
S-216-J files to the left are ALSO valid for these other models...
JB
S-216-JB-35, -60, -100 or -101
S-216-JB-125, -150, -200 or -300
JN
S-216-JN-10
S-216-JN-20 or -30
S-216-JN-35, -60 or -100
JBN
S-216-JBN-35, -60, -100 or -101
S-216-JBN-125, -150, -200 or -300
User Agreement:
Down loading models from this page acknowledges your agreement to use the model only for use in your application and not for sale to anyone else or for distribution to others.
Disclaimer: To the best of our knowledge, these 3D models are accurate and are detailed enough for most applications. Please feel free to use them but be careful to note that they are not manufacturer-certified models. They have been posted here for your design convenience and without guarantee of accuracy. We would appreciate input on any improvements that you may suggest.
