Sprague S-86-JN Gas Boosters & Parts
Repair Parts below

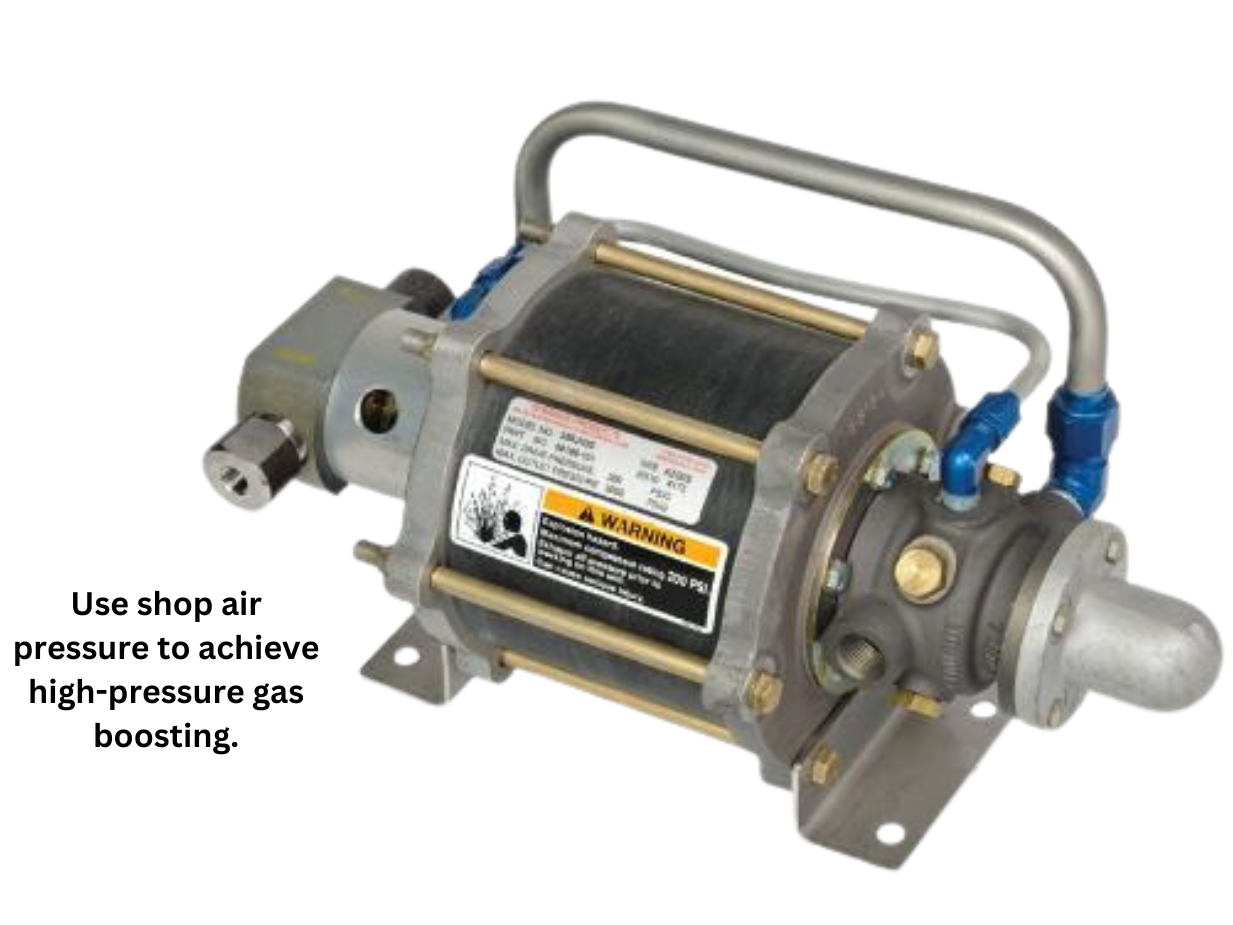

HOW THE SPRAGUE GAS BOOSTER WORKS
The Sprague gas booster is an air-operated piston-type booster. It uses a mechanically operated, snap-action air selector valve to cycle the booster. Low pressure air acting against a large area piston drives a small area compression piston which converts input gas to higher pressure. The discharge pressure developed is determined by the ratio between the area of the two pistons, the operating air pressure and the available pre-charge pressure. The function of the pre-charge pressure to the booster is to charge the high pressure cylinder inside the booster with gas, reducing the time required to reach higher pressures and the time to return the pistons for the next compression cycle. See the manuals (above) for more details.
Ratio▼
Model #
2:1
S-86-JN-2
5:1
S-86-JN-5
15:1
S-86-JN-15
30:1
S-86-JN-30
60:1
S-86-JN-60
100:1
S-86-JN-100
Part Description
Price
Buy
Max Outlet
PSI
Max.Output FlowRate, SCFM
Approx.
weight, lbs
450
22
17
1,100
13
16
3,100
10
18
6,000
7.2
20
6,100
3.8
20
10,300
4.0
20
Info./
Drugs
Repair Parts for S-86-JN Gas Boosters
Pump Ratio▼
Model #
2:1
90725-11
5:1
90727-11
15:1
90729-11
30:1
90731-11
60:1
90733-11
100:1
90735-11
Part Description
Price
Buy
Please Email us if you need to purchase individual repair parts.

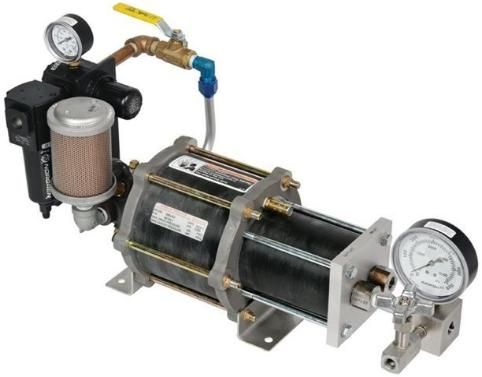

Gas Boosters are also available as "Power Units" with ready-mounted controls. Please email us for price and availability.
Volume pricing
We offer volume pricing on Sprague products as
follows:
1-2 units = List price
3-10 units = - 5%
11-25 units = -10%
>25 = call for quote.
List pricing will show when placing your order but the
discount will be applied when we process the order.
