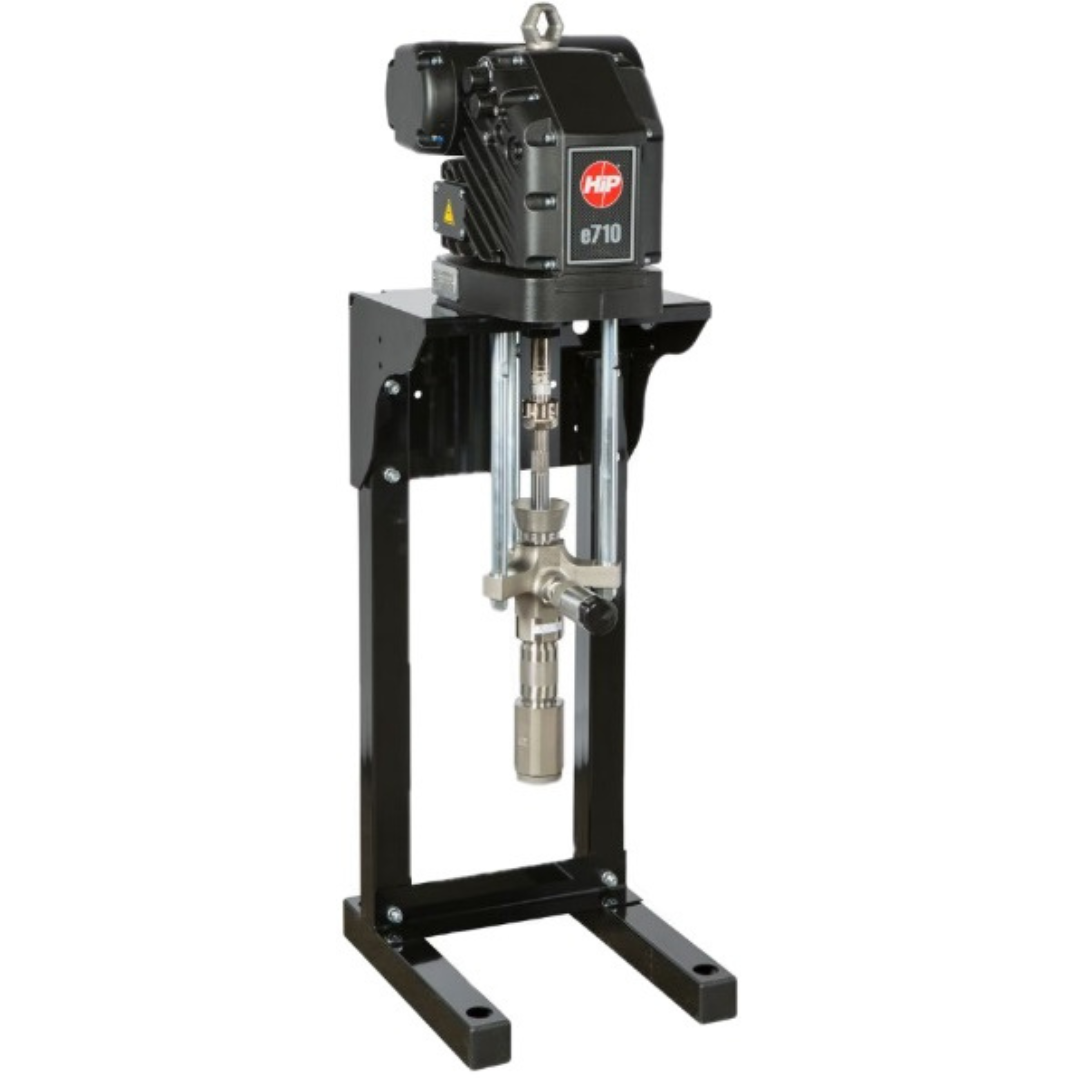

e710 Supercritical CO2 Extraction Pump System
In response to the burgeoning market demand for environmentally friendly extraction processes for a wide range of natural oils and foods, High Pressure Equipment Company has developed the e710 supercritical CO2 extraction pump system. This ATEX, FM and IECEx certified system features an electric CO2 extraction pump specifically designed for CO2 circulation to recover 100% of the CO2 vapor when used with recovery tank cooling. The e710 offers a small footprint (17.0" x 20.4" base x 58" high) with the electric motor providing quiet operation.
HiP's patented pump/drive technology is the industry's first high pressure electric pump system that does not require an air compressor and uses an explosion-proof motor rated for C1D1 areas. The e710 pump can provide a continuous 100% duty cycle for 24/7 operation with constant pressure or constant flow control. The system is designed to process liquid condensation without damage and to pull vacuum back through the pump when evacuating a system.
System Features
• Environmentally friendly extraction process
• Ideal extraction process for natural oils and foods
• ATEX, FM and IECEx Certified supercritical CO2 extraction pump system
• Positive displacement CO2 extraction pump
• Designed specifically for CO2 circulation
• Recovers 100% of CO2 vapor when used with recovery tank cooling
• Pull vacuum back through the pump when evacuating a system
• Passes liquid condensation without damage

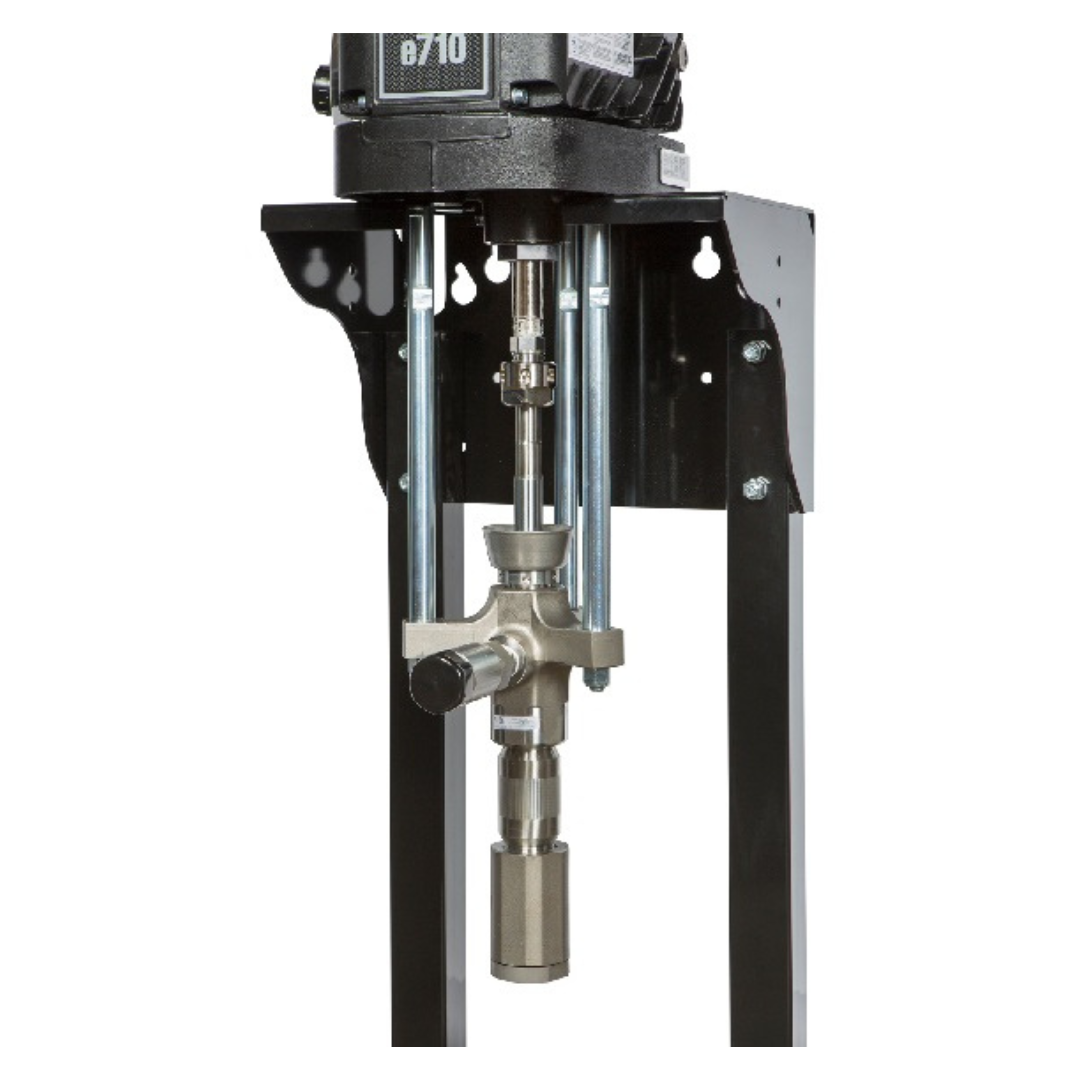

Pump Features
• Sizes: 145, 180, 220, 290 cc
• Packings: PTFE/UHMWPE
• Check Seat: Tungsten Carbide
• Check Ball: 440 SST
• Rod: 17-4 PH SST w/ Hard Chrome
• Cylinder: 304 SST w/ Hard Chrome
• Housings: 17-4 PH SST

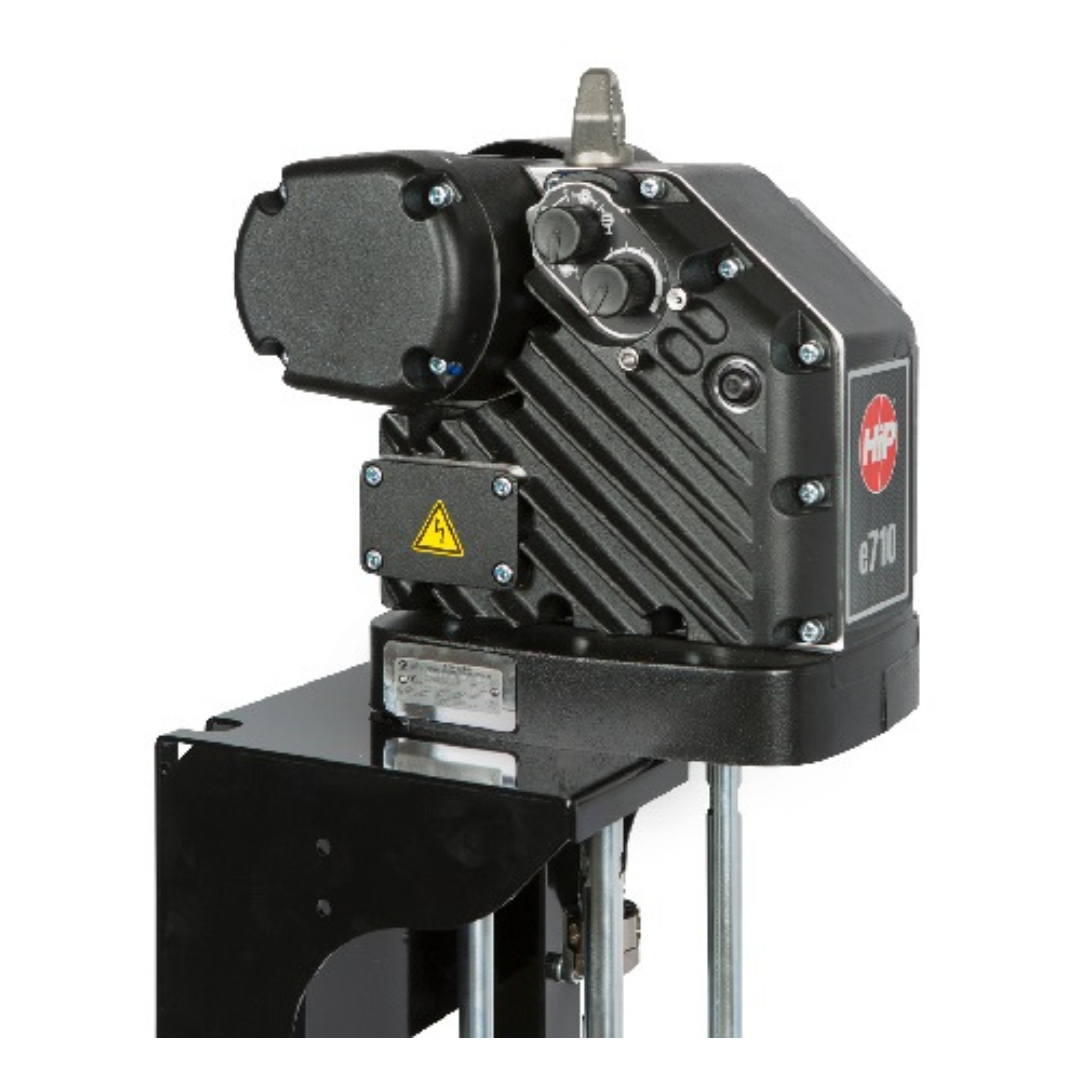

Electric Motor Features
• Explosion-proof motor rated for C1D1 areas
• Control technology drives the pump to a constant pressure or flow
• Three-phase and single-phase models available
• Continuous 100% duty cycle - run 24/7
• No air compressor needed
• Patented pump drive technology
• Stall under pressure without damage
• Start against full load and pressure
• No driving air used, cannot leak air into the system
• Maximum pumping pressure output and/or flow is adjustable
• No lubrication in the pump heads; no contamination of product
• Compliant with FM and IECEx standards for C1D1 motors
• Meets Class 1 Division 1 hazardous area requirements (when installed correctly)
• PLC control for remote operation
Part
Pump Size
VAC
30H000
220CC
220
30H002
145CC
220
30H004
220CC
480
30H006
145CC
480
Max PSI
Bar
Flow gpm
lpm
2,030
140
1.2
4.4
3,040
210
0.8
2.9
2,540
189
1.2
4.4
3,800
284
0.8
2.9
