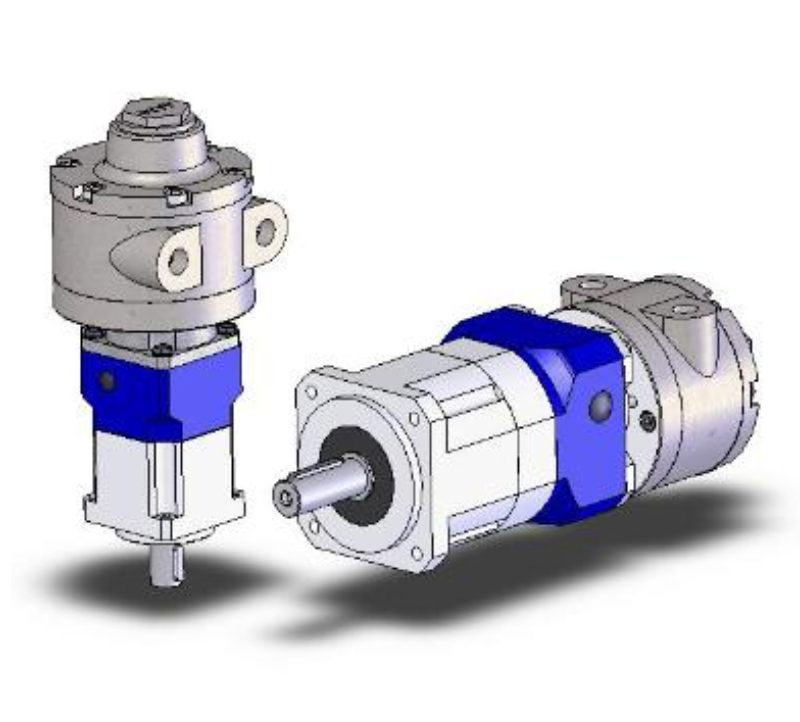

PV Series 3-D Models

PV Series 3-D Models

RATIO

STEP FILES

MODEL NUMBER

3:1, 5:1, 7:1 & 10:1

Models: PV40-0610-003, -005, -007 & -010

15:1 & 20:1

Models: PV20-0620-015 & -020

40:1

Models: PV20-0920-040

RATIO

STEP FILES

MODEL NUMBER

3:1, 5:1, 7:1 & 10:1

Models: PV40-0610-003, -005, -007 & -010

15:1

Models: PV40-0620-015

20:1 & 40:1

Models: PV40-0920-020, -040

Disclaimer: To the best of our knowledge, these 3D models are accurate and detailed enough for most applications. Please feel free to use them but be careful to note that they are not certified models. They have been posted here for your design convenience and without guarantee of accuracy. We would appreciate input on any improvements that you may suggest.

Use Agreement: Downloading models from this page acknowledges your agreement to use the model only for use in your application and not for sale to anyone else or for distribution to others.


Return to VP Series - Order Page
